Vertical Electrophoresis
Vertical electrophoresis utilises potent protein and nucleic acid analytical tools for applications within all aspects of life science research, ranging from purity determination to analysis of comples protein lysates. BIONOVA provide a comprehensive range of vertical electrophoresis system, complete with tanks. inserts and reagents to fulfill a variety of applications and techniques in different gel sizes and sample capacities.
BB-series vertical electrophoresis tank comprise 9 models, including: BN15-SCZ2+, BN15-SCZ4+, BN15-MINI-P4, BN15- CZB, BN15-CZBL, BN15-BX5, BN15-BX5L, BN15-SCZ8 and BN15-SCZ9
| BB series vertical electrophoresis tank function table | |||||||
|---|---|---|---|---|---|---|---|
| Model Function |
BN15-SCZ2+ | BN15-SCZ4+ BN15-MINI-P4 |
BN15-BX3 BN15-CZA |
BN15-BX3L BN15-CZAL |
BN15-BX5 BN15-CZB |
BN15-BX5L BN15-CZBL |
BN15-SCZ8 BN15-SCZ9 |
| Protein samples analysis, purification Nucleic acid |  |
|
|
|
|
|
|
| sample analysis, purification and preparation | |
|
|
|
|
||
| Seed purity testing | |
|
|||||
| Analysis of high-throughput SSR markers | |
|
|||||
| Technical specifications for BB-series Vertical Electrophoresis | |||||
|---|---|---|---|---|---|
| Model | Gel area(WxL) mm | Buffer capacity ml | No. of samples | Gel making | Advised electrophoresis apparatus |
| BN15-SCZ2+ | 82x88 | ~750 | 11~30 | Gel casting | BN15-300V/BN15-300V |
| BN15-SCZ4+ | 82x88 | ~1000 | 11~60 | Gel casting | BN15-600C/BN15-600V |
| BN15-Mini-P4 | 81x73 | ~1200 | 11~60 | Gel casting | BN15-600C/BN15-600V |
| BN15-JX5 | 186x95 | ~1800 | 25~104 | Agarose sealing | BN15-EPS300V/BN15-600V |
| BN15-JX5L | 186x205 | ~3500 | 25~104 | Agarose sealing | BN15-600C/BN15-600V |
| BN15-CZ-B | 186x95 | ~1800 | 25~104 | Gel casting | BN15-EPS300V/BN15-600V |
| BN15-CZ-BL | 186X205 | ~3500 | 25~104 | Gel casting | BN15-600C/BN15-600V |
| BN15-SCZ8 | 174X175 | ~2200 | 21~70 | Gel casting | BN15-600C/BN15-600V |
| BN15-SCZ9 | 121x150 | ~900 | 16~52 | Gel casting | BN15-300VC/BN15-EPS300V |

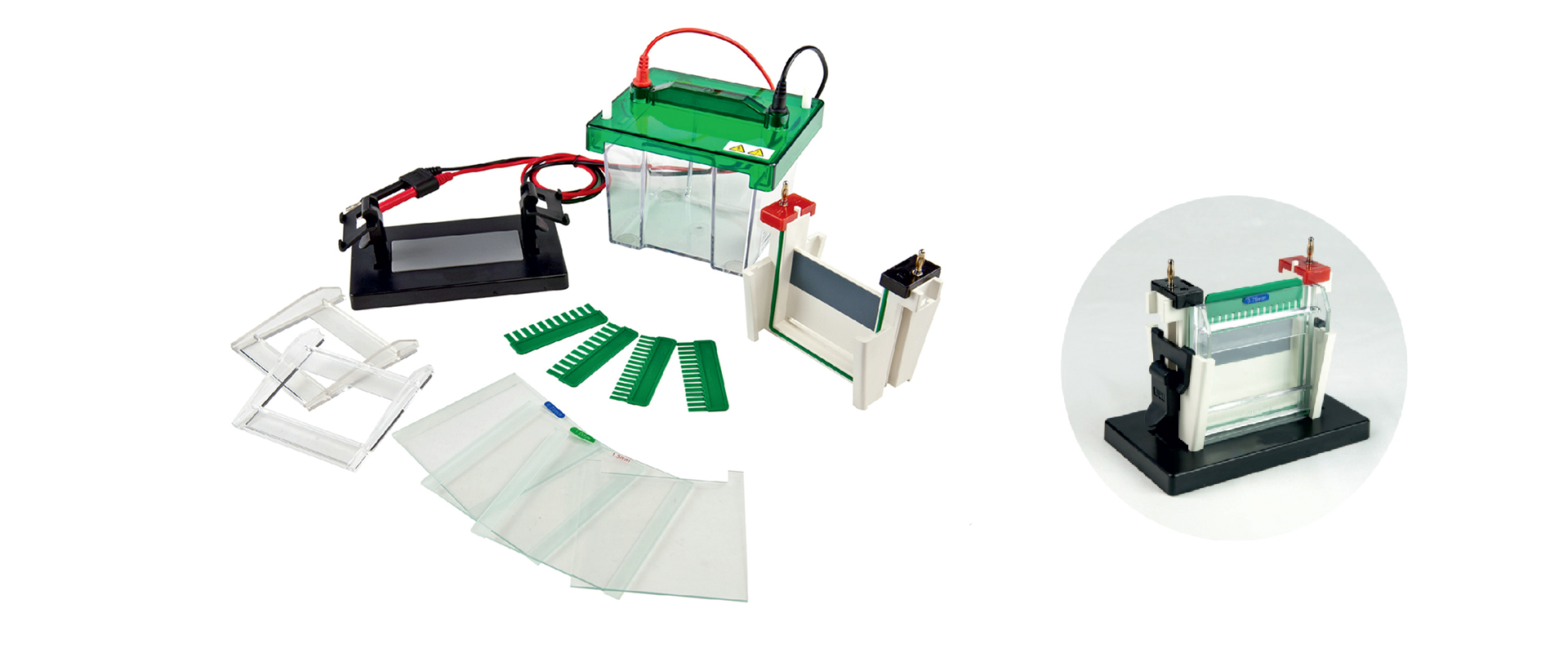

BN15-SCZ4+ Vertical Electrophoresis tank
1. The installation of glass plates can be completed in just 15 seconds, no need
for knob, fast and convenient.
2. With a gel casting in original position, no need to move glasses from gel
making to elctrophoresis running. It is more convenient to observe gel preparing
through both sides of the glasses.
3. With the background color, makes it easy to observe sample loading and
electrophoresis running.
4. Abundant buffer not only guarantees a cooling environment, but also keeps the pH
value stable during the whole experiment.
5. Auto-switch-off when the lid is moved.
| Glass plate area(WxL) | 100x100 (mm) |
| Gel area (WxL) | 82x88 (mm) |
| Gel thickness | 0.75, 1.0, 1.5 (mm) |
| Amount of gel | 1~2 (piece) |
| No. of samples | 11~30 |
| Buffer capacity | ~750 (ml) |
| Volume (LxWxH) | 150x120x115 (mm) |
| Weight | 1.5 (kg) |
| Parts name | Packing quantity |
| Body tank with electrode | 1 |
| Gel casting base | 1 |
| Notched glass plates | 4 |
| 0.75mm bonded glass spacer | 2 |
| 1.0mm bonded glass spacer | 2 |
| 1.5mm bonded glass spacer | 2 |
| 0.75mm thickness 11 wells comb | 2 |
| 1.0mm thickness 11 wells comb | 2 |
| 1.5mm thickness 11 wells comb | 2 |
| 0.75mm thickness 15 wells comb | 2 |
| 1.0mm thickness 15 wells comb | 2 |
| 1.5mm thickness 15 wells comb | 2 |
| Gel Shovel | 1 |
| Clamp version | 2 |
| Dummy plate | 1 |
| Electrical Cables | 1 |

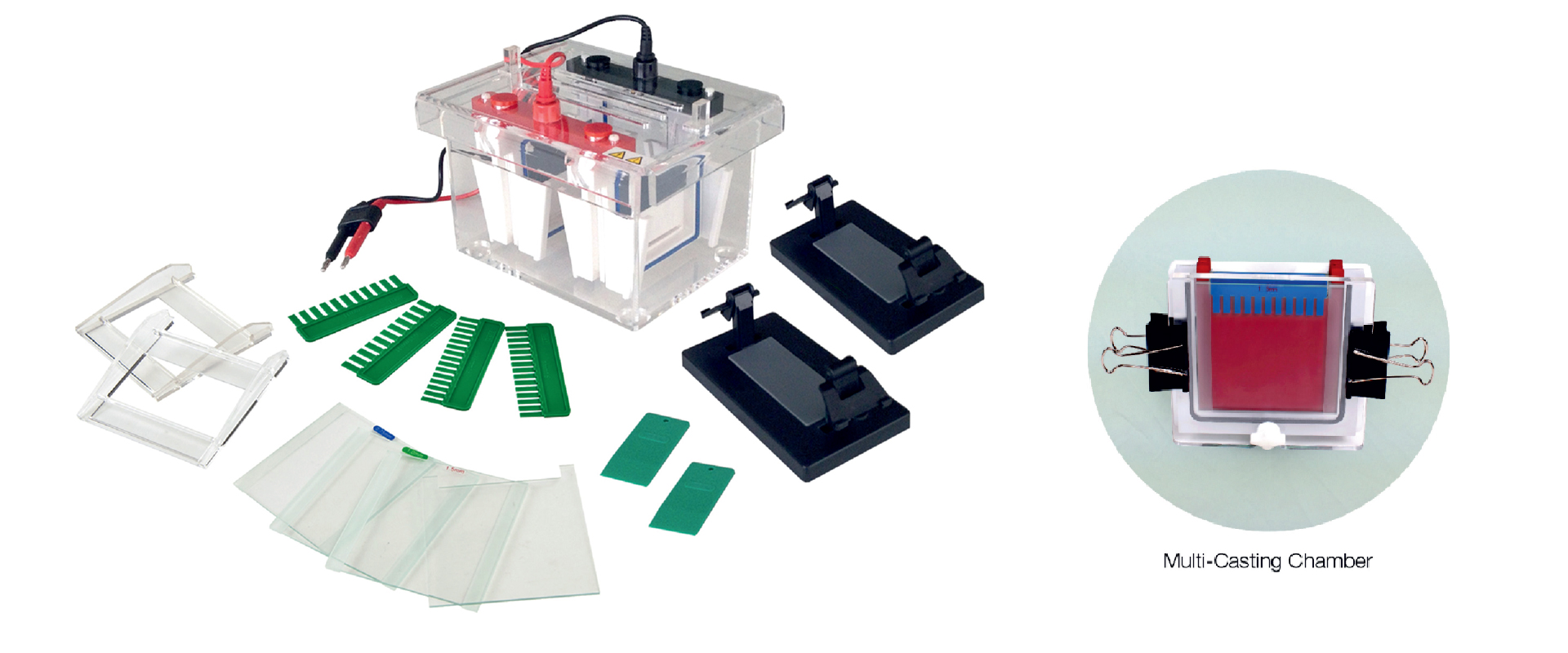

BN15-SCZ4+ Vertical Electrophoresis tank
1. With two gel castings, 1-4 plates of gels can be made at the same time. There are
two methods of "casting gel in original position" and "multi-casting gel" for option.
2. The installation of glass plates can be completed in just 15 seconds, no need for
knob, fast and convenient.
3. With a gel casting in original position, no need to move glasses from gel making to
electrophoresis running. It is more convenient to observe gel preparing through both
sides of the glasses.
4. With the background color, makes it easy to observe sample loading and electrophoresis
running.
5. Abundant buffer not only guarantees a cooling environment, but also keeps the pH value
stable during the whole experiment.
6. Auto-switch-off when the lid is moved.
| Glass plate area(WxL) | 100x100 (mm) |
| Gel area (WxL) | 82x88 (mm) |
| Gel thickness | 1.0, 1.5 (mm) |
| Amount of gel | 1~4 (piece) |
| No. of samples | 11~60 |
| Buffer capacity | ~1000 (ml) |
| Volume (LxWxH) | 220x170x120 (mm) |
| Weight | 2.5 (kg) |
| Parts name | Packing quantity |
| Body tank with electrode | 1 |
| Gel casting base | 2 |
| Notched glass plates | 6 |
| 1.0mm bonded glass spacer | 4 |
| 1.5mm bonded glass spacer | 4 |
| 1.0mm thickness 11 wells comb | 4 |
| 1.5mm thickness 11 wells comb | 4 |
| 1.0mm thickness 15 wells comb | 4 |
| 1.5mm thickness 15 wells comb | 4 |
| Gel Shovel | 4 |
| Clamp version | 2 |
| Dummy plate | 3 |
| Electrical Cables | 1 |

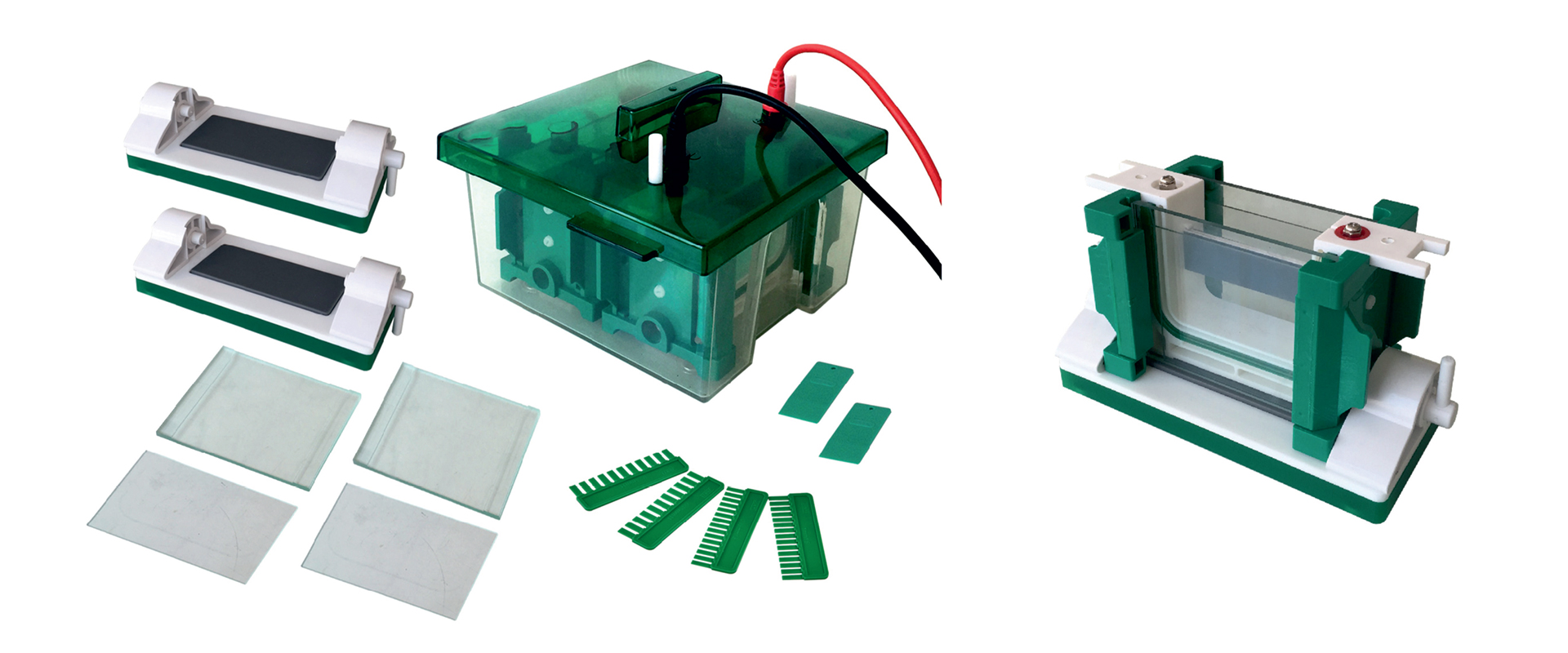

BN15-MINI-P4 Vertical Electrophoresis tank
1. With two gel castings, 1-4 plates of gels can be made at the same time.
2. The installation of glass plates can be completed in just 15 seconds, no need for knob,
fast and convenient.
3. With a gel casting in original position, no need to move glasses from gel making to
electrophoresis running. It is more convenient to observe gel preparing through both
sides of the glasses.
4. With the background color, makes it easy to observe sample loading and electrophoresis
running.
5. Abundant buffer not only guarantees a cooling environment, but also keeps the pH value
stable during the whole experiment.
6. With protective strip of positive electrode, it can prevent produing bubbles and also
protect platium silk from damage.
7. Auto-switch-off when the lid is moved.
| Glass plate area(WxL) | 101x82 (mm) |
| Gel area(WxL) | 101x73 (mm) |
| Gel thickness | 1.0 (mm) |
| Amount of gel | 1~4 (piece) |
| No. of samples | 11~60 |
| Buffer capacity | ~1200 (ml) |
| Volume (LxWxH) | 175x175x100 (mm) |
| Weight | 2.5 (kg) |
| Parts name | Packing quantity |
| Body tank with electrode | 1 |
| Gel casting base | 2 |
| Short glass plates | 6 |
| 1.0mm bonded glass spacer | 6 |
| 1.0mm thickness 11 wells comb | 6 |
| 1.0mm thickness 15 wells comb | 6 |
| Gel Shovel | 2 |
| Inner core seat | 1 |
| Electrical Cables | 1 |

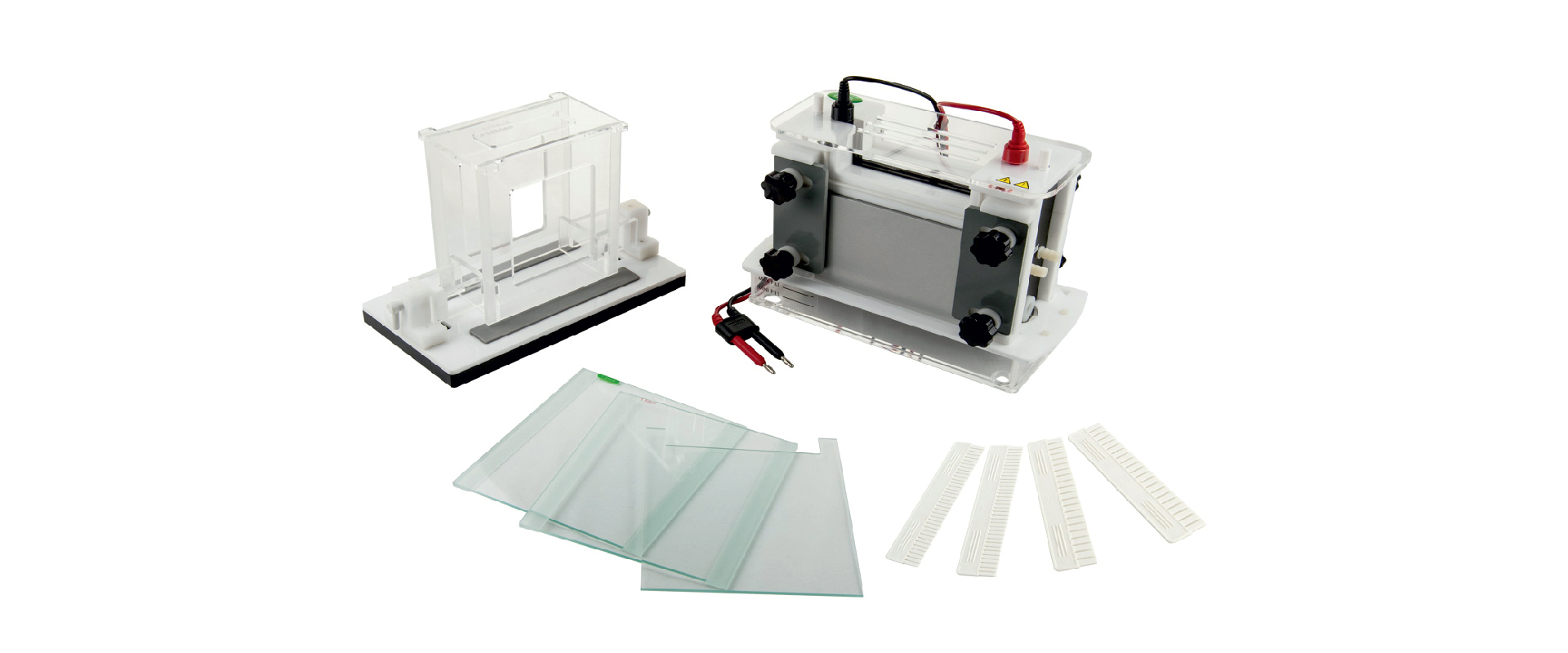

BN15-BX Vertical Electrophoresis tank
1. The installation of glass plates can be completed in just 15 seconds, no need for
knob, fast and convenient.

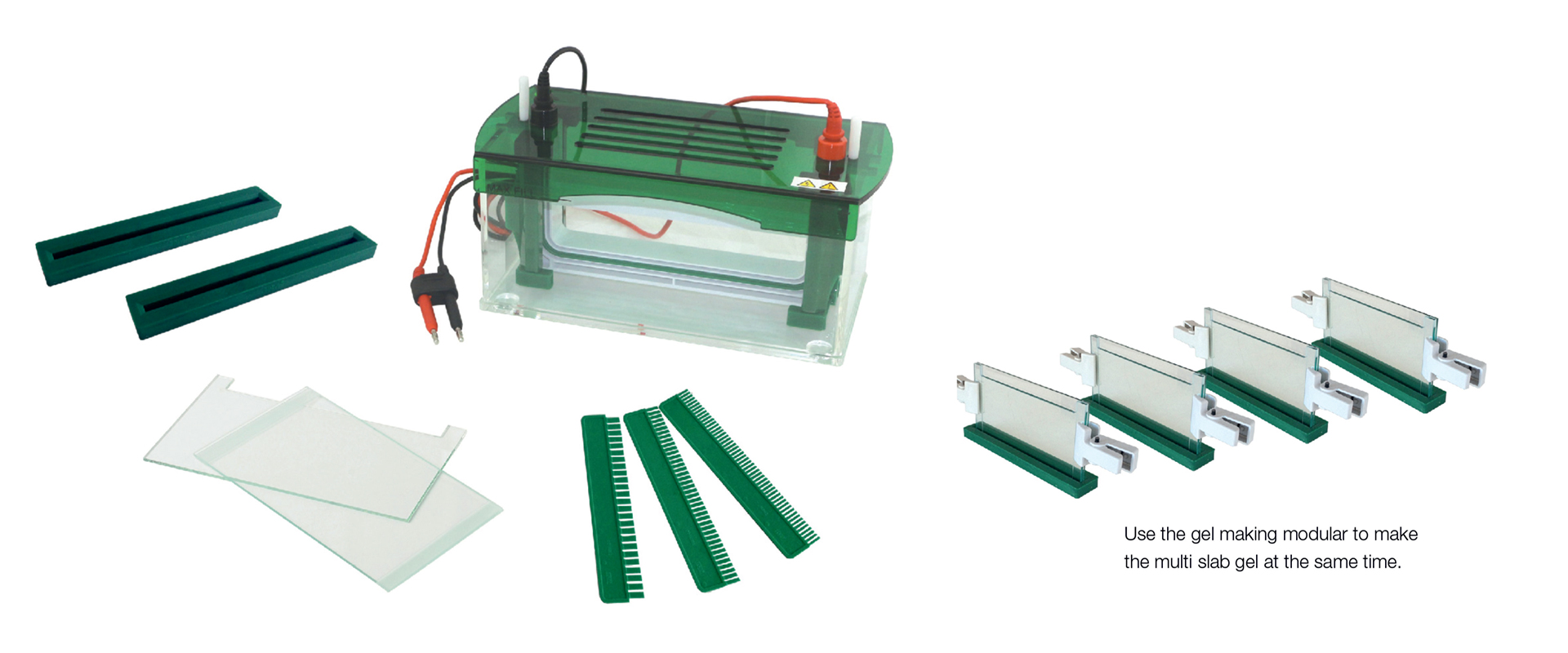

2. With the gel making device modular, you can make multi slab gel at the same time.
3. Easy open button makes it safe and convenient to open the cover.
4. Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable
during the whole experiment process.
5. Auto-switch-off when the lid is moved.
| BN15-BX3 | BN15-BX3L | BN-BX5 | BN15-BX5L | |
|---|---|---|---|---|
| Glass plate area (WxL) | 190x165 (mm) | 190x220 (mm) | 216x110 (mm) | 216x220 (mm) |
| Gel area (WxL) | 160x150 (mm) | 160x205 (mm) | 186x95 (mm) | 186x205 (mm) |
| Gel thickness | 1.0 (mm) | 1.0 (mm) | 1.0 (mm) | 1.0 (mm) |
| Amount of gel | 1~2* (piece) | 1~2* (piece) | 1~2* (piece) | 1~2* (piece) |
| No. of samples | 21, 35 | 21, 35 | 25, 40, 52 | 25, 40, 52 |
| Buffer capacity | ~1500 (ml) | ~3000 (ml) | ~1800 (ml) | ~3500 (ml) |
| Volume (LxWxH) | 254x140x200 (mm) | 254x140x250 (mm) | 280x140x135 (mm) | 280x140x250 (mm) |
| Weight | 4.0 (kg) | 5.2 (kg) | 3.2 (kg) | 5.6 (kg) |
We can provide 4 or 6 plates system for you to to meet the requirement of high throughput electrophoresis

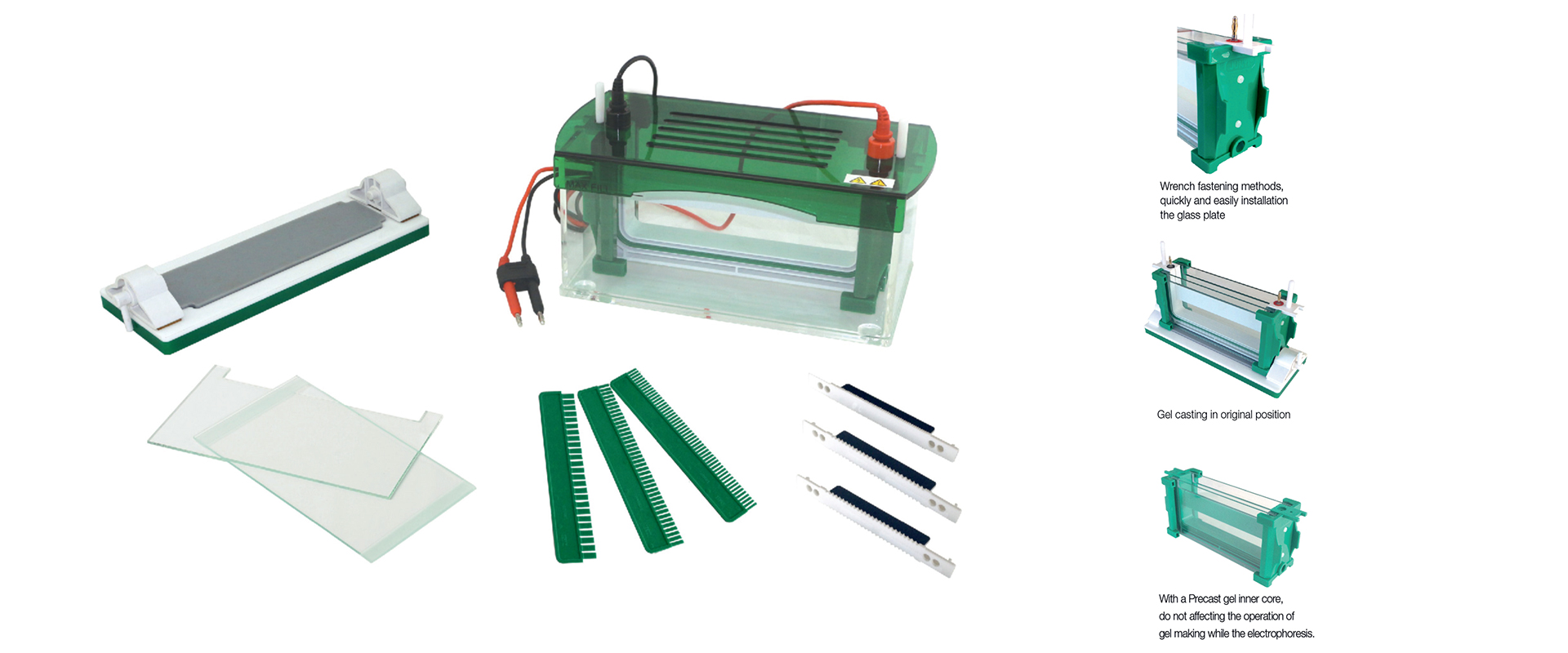

BN15-CZ Vertical Electrophoresis tank
1. The installation of glass plates can be completed in just 15 seconds, no need for knob,
fast and convenient.
2. With a gel casting in original position, no need to move glasses from gel making to
electrophoresis running. It is more convenient to observe gel preparing through both
sides of the glasses.
3. With a precast gel inner core, can make the gel casting and electrophoresis running at
the same time.
4. Easy open button makes it safe and convenient to open the cover.
5. Abundant buffer not only guarantees cooling effects, but also keeps the pH value stable
during the whole experiment.
6. Auto-switch-off when the lid is moved.
| BN15-CZA | BN15-CZAL | BN15-CZB | BN15-CZBL | |
|---|---|---|---|---|
| Glass plate area (WxL) | 190x165 (mm) | 190x220 (mm) | 216x110 (mm) | 216x220 (mm) |
| Gel area (WxL) | 160x150 (mm) | 160x205 (mm) | 186x95 (mm) | 186x205 (mm) |
| Gel thickness | 1.0 (mm) | 1.0 (mm) | 1.0 (mm) | 1.0 (mm) |
| Amount of gel | 1~2* (piece) | 1~2* (piece) | 1~2* (piece) | 1~2* (piece) |
| No. of samples | 21, 35 | 21, 35 | 25, 40, 52 | 25, 40, 52 |
| Buffer capacity | ~1500 (ml) | ~3000 (ml) | ~1800 (ml) | ~3500 (ml) |
| Volume (LxWxH) | 254x140x200 (mm) | 254x140x250 (mm) | 280x140x135 (mm) | 280x140x250 (mm) |
| Weight | 4.0 (kg) | 5.2 (kg) | 3.2 (kg) | 5.6 (kg) |
We can provide 4 or 6 plates gel system for you to meet the requirement of high throughput electrophoresis.
BN15-SCZ8, BN15-SCZ9 Vertical Electrophoresis tank
1. Special heat dissipation processed aluminum plate firmly clings to the gel plates,
which effectively guarantees the gel temperature is even, ensures the electrophoresis
trip are straighter.
2. Can be connected with the constant temperature circulation device, and the gel can be
controlled by constant temperature.
3. Can save 50% buffer compare with traditional tanks.
4. Removable electrodes enable maintance and replacement easy and quick.
5. Auto-switch-off when the lid is moved.
| BN15-SCZ8 | BN15-SCZ9 | |
|---|---|---|
| Glass plate area (WxL) | 214x220 (mm) | 151x170 (mm) |
| Gel area (WxL) | 174x195 (mm) | 121x150 (mm) |
| Gel thickness | 1.0, 1.5 (mm) | 1.0, 1.5 (mm) |
| Amount of gel | 1~2 (piece) | 1~2 (piece) |
| No. of samples | 21~70 | 16~52 |
| Buffer capacity | ~2200 (ml) | ~900 (ml) |
| Volume (LxWxH) | 320x140x260 (mm) | 296x130x200 (mm) |
| Weight | 13.5 (kg) | 6.6 (kg) |
| Parts name | Packing quantity |
|---|---|
| Body tank with electrode | 1 |
| Gel casting base | 1 |
| Notched glass plates | 3 |
| 1.0mm bonded glass spacer | 3 |
| 1.5mm bonded glass spacer | 3 |
| 1.0mm thickness 21 wells comb | 2 |
| 1.5mm thickness 21 wells comb | 2 |
| 1.0mm thickness 35 wells comb | 2 |
| 1.5mm thickness 35 wells comb | 2 |
| Dummy plate | 1 |
| Electrical Cables | 1 |
| Parts name | Packing quantity |
|---|---|
| Body tank with electrode | 1 |
| Gel casting base | 1 |
| Notched glass plates | 2 |
| 1.0mm bonded glass spacer | 2 |
| 1.5mm bonded glass spacer | 2 |
| 1.0mm thickness 16 wells comb | 2 |
| 1.5mm thickness 16 wells comb | 2 |
| 1.0mm thickness 26 wells comb | 2 |
| 1.5mm thickness 26 wells comb | 2 |
| Dummy plate | 1 |
| Electrical Cables | 1 |
