ELECTRO TRANSFER UNITS
In electrophoretic transfer (blotting) method, the gel containing the separated sample is sandwiched
between immobilizing membranes. When an electric field is applied, the separated molecules are
transferred from the gel to the membrane, where they are bound and readily accessible for further
analysis. We offer blot models; Mini model (8x7cm gel) and regular model (16x14cm gel) are single
cassette models for western blotting of proteins onto membrane filters. Dual models of the same are
for the electrophoretic transfer of two gels simultaneously and are provided with heat exchanger
which controls the temperature of the system and increases of transfer efficiency considerably.
Electro transfer selection guide
| Specification |
Electro
Transfer Mini |
Electro
Mini Dual |
Electro
Midi |
Electro
Midi Dual |
| Gel Dimensions |
8x 7cm |
8 x 7cm x 2 Nos |
16 x 14cms |
16 x 14cms x 2 Nos |
| Buffer Volume |
350ml |
600ml |
1000ml |
1500ml |
| Buffer Reservoir |
1 |
1 |
1 |
1 |
| Gel Cassette |
1 |
2 |
1 |
2 |
| Water Circulation |
No |
Yes |
No |
Yes |
| Filter Pads |
6 |
6 |
6 |
6 |
| Cushion Pads |
12 |
12 |
12 |
12 |
| Cat No |
BN14-08-01 |
BN14-08-02 |
BN14-08-03 |
BN14-08-04 |

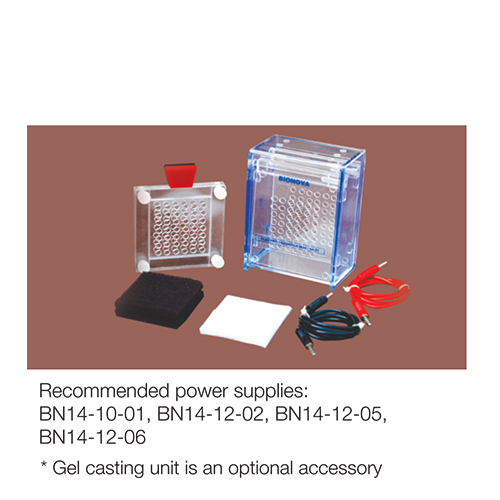

Electro Transfer Mini System
BN14-08-01
| Model |
Electro transfer mini system |
| Cat No. |
BN14-08-01 |
| Principal Materials |
Acrylic |
| Buffer Reservoir |
1 No. |
| Buffer Volume |
350ml |
| Gel Cassette |
1 No. |
| Gel Size |
8x7 cm |
| Filter pads |
6 Nos. |
| Cushion pads |
12 Nos. |
| Connecting Cord |
Red and Black (1 each) |
| No. of Platinum Electrodes cells |
Red and Black (1 each) |
| Lid |
1 No. |
Transfer Units

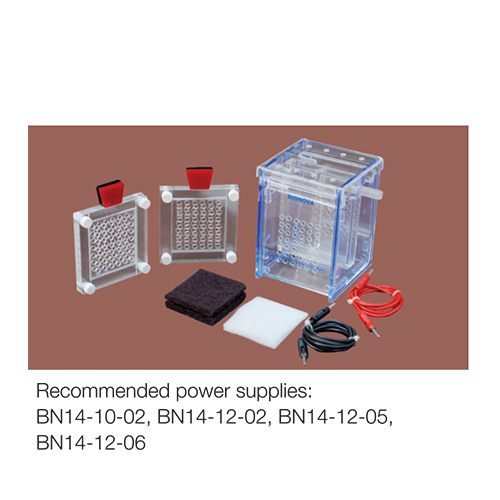

Electro Transfer Mini Dual System
BN14-08-02
| Model |
Electro Transfer Mini Dual System |
| Cat No. |
BN14-08-02 |
| Principal Materials |
Acrylic |
| Buffer Reservoir |
1 No. |
| Buffer Volume |
600 ml |
| Gel Cassette |
2 Nos. |
| Get Size |
8x7 cm |
| Filter pads |
1 pkt. |
| Cushion pads |
1 pkt. |
| Heat Exchanger |
1 No |
| Connecting Cord |
Red and Black (1 each) |
| No. of platinum Electrodes cells |
Red and Black (1 each) |
| Lid |
1 No. |

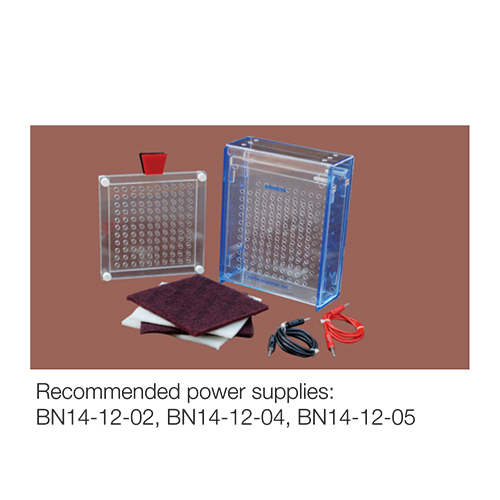

Electro Transfer Midi System
BN14-08-03
| Model |
Electro Transfer Midi Dual System |
| Cat No. |
BN14-08-03 |
| Principal Materials |
Acrylic |
| Buffer Reservoir |
1 No. |
| Buffer Volume |
1000 ml |
| Gel Cassette |
1 Nos. |
| Get Size |
16x14 cm |
| Filter pads |
6 Nos. |
| Cushion pads |
12 Nos. |
| Connecting Cord |
Red and Black (1 each) |
| No. of platinum Electrodes cells |
Red and Black (1 each) |
| Lid |
1 No. |

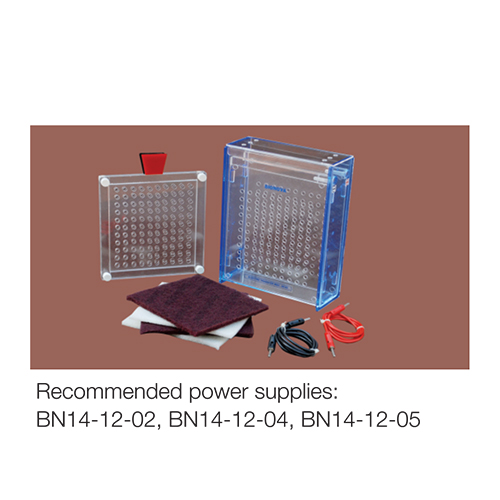

Electro Transfer Midi Dual System
BN14-08-04
| Model |
Electro Transfer Midi Dual System |
| Cat No. |
BN14-08-04 |
| Principal Materials |
Acrylic |
| Buffer Reservoir |
1 No. |
| Buffer Volume |
1500 ml |
| Gel Cassette |
2 Nos. |
| Get Size |
16x14 cm |
| Filter pads |
6 pkt. |
| Cushion pads |
12 nos |
| Heat Exchanger |
1 No. |
| Connecting Cord |
Red and Black (1 each) |
| No. of platinum Electrodes cells |
Red and Black (1 each) |
| Lid |
1 No. |
Ordering Information
| ELECTROTRANSFER SYSTEMS |
| Pl. No. |
Product |
Pack Size |
| BN14-08-01 |
Electrotransfer Mini System Gel Size ( 8 cm x 7 cm ) |
1 Unit |
| BN14-08-02 |
Electrotransfer Mini Dual System Gel Size ( 8 cm x 7 cm ) |
1 Unit |
| BN14-08-03 |
Electrotransfer Midi System Gel Size ( 16 cm x 14 cm ) |
1 Unit |
| BN14-08-04 |
Electrotransfer Midi Dual System Gel Size ( 16 cm x 14 cm ) |
1 Unit |
| ACCESSORIES FOR ELECTROTRANSFER SYSTEMS |
| BN14-08-01-01 |
Filter pads (8 cm x 7 cm) (6 / pack) |
1 pack |
| BN14-08-01-02 |
Cushion pads (8cm x 7 cm) (12 / pack) |
1 pack |
| BN14-08-03-01 |
Filter pads (16 cm x 4 cm) (6 / pack) |
1 pack |
| BN14-08-03-02 |
Cushion pads (16 cm x 14 cm) (12 / pack) |
1 pack |
| BN14-CC-1 |
Red and black (1 each) |
1 pack |
