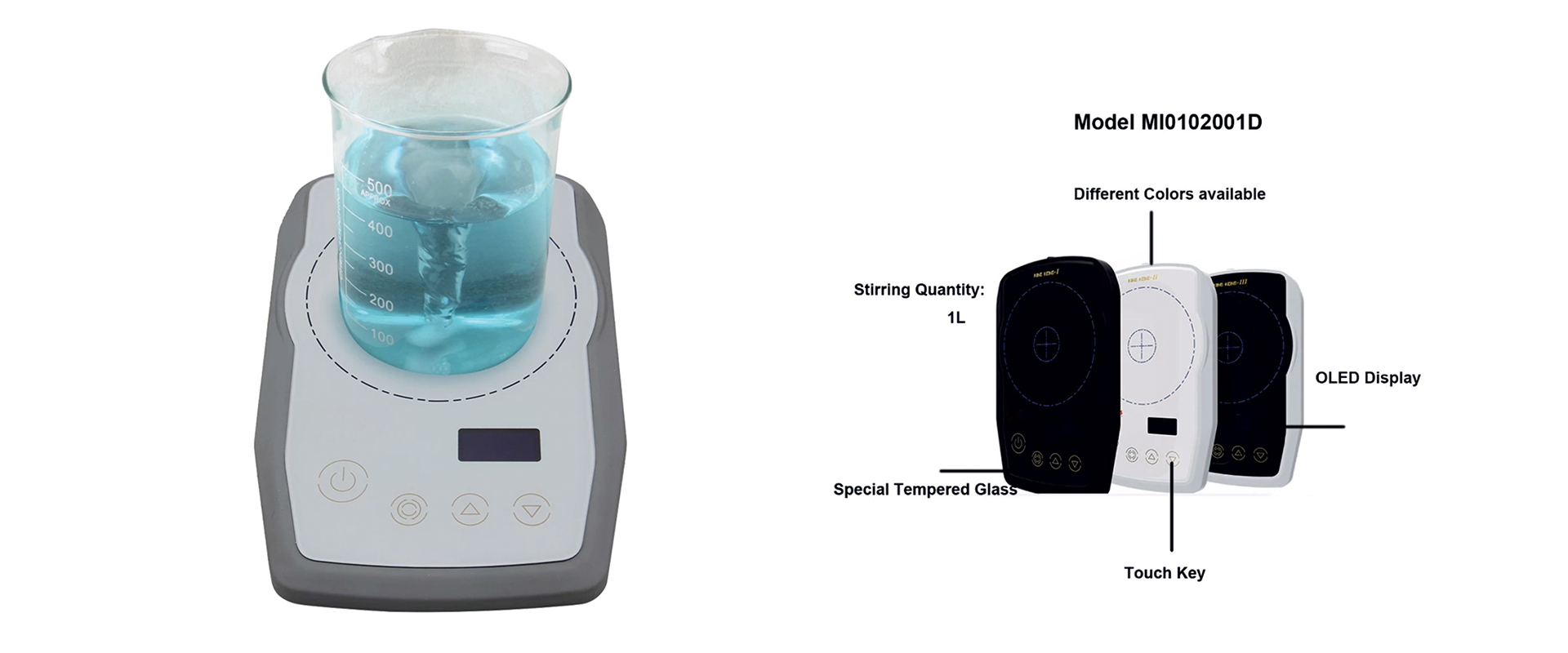

BN15-0102001D Ultra-flat Mini Magnetic Stirrer
Features
1. Speed range of 15-1500rpm
2. High IP protection class (IP 65)
3. Automatic reverse rotation for excellent mixing performance
4. Set-up plate and casing are made from chemically resistant materials
5. Slip-proof and stable stand.
| Model | BN15-0102001D | Permissible relative humidity | 80% |
|---|---|---|---|
| Stirring Positions | 1 | Protection class | Room temp.- 310 |
| Working plate material | Tempered glass | According to DIN EN 60529 | IP 42 |
| Speed range [rpm] | 15 - 1500 | Voltage [VAC] | 200-240/100-120 |
| Display | OLEO | Frequency [Hz] | 50/60 |
| Max. Stirring quantity [H2O, ml] | 1000 | Power[W] | 650 |
| Motor rating input [W] | 5 | Dimensions [W x D x H, mm] | 250 X 148 X 85 |
| Motor rating output [W] | 3 | Weight | 1.9 kg |
| Max. Stirring bar [mm] | 25 | Type | Ultra Flat Mini Magnet Stirrer |
| Set-up surface [mm] | 100 | Other Names: Lab Flat Spin Stirrer; Ultraflat Magnetic Stirrer; Analytical Instruments stirrers; Mix Drive Magnetic Stirrerj; Micro Magnetic Stirrer; KingKong Magnetic Stirrer; KingKong OLEO Magnetic Stirrer... |
|
| Permissible ambient temperature [0C] | 5 - 40 |
High IP protection class (IP 65)
Set-up plate and casing made from chemically resistant materials
Slip-proof, safe stand
Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds. - High IP protection class (IP 65) - Set-up plate and casing made from chemically resistant materials - Slip-proof, safe stand.
With reliable, safe performance for stirring applications. Our mini Magnetic Stirrer is ultra-flat is used in physical chemical,analysis and biotech labs.The stirrer can provide better stirring and stable performance.
