Bionova LED Display Dry Bath Incubator Lab Heating Block
Product Description
Dry Bath Incubators are ideal for incubation and activation of cultures, melting and boiling point
determination, enzyme reactions, immunoassays, blood urea nitrogen determinations and a wide variety of
other laboratory applications.
Four Bionova Scientific Dry Bath Incubators can accommodate various interchangeable heating blocks and
provide precise temperature control for reproducible results.

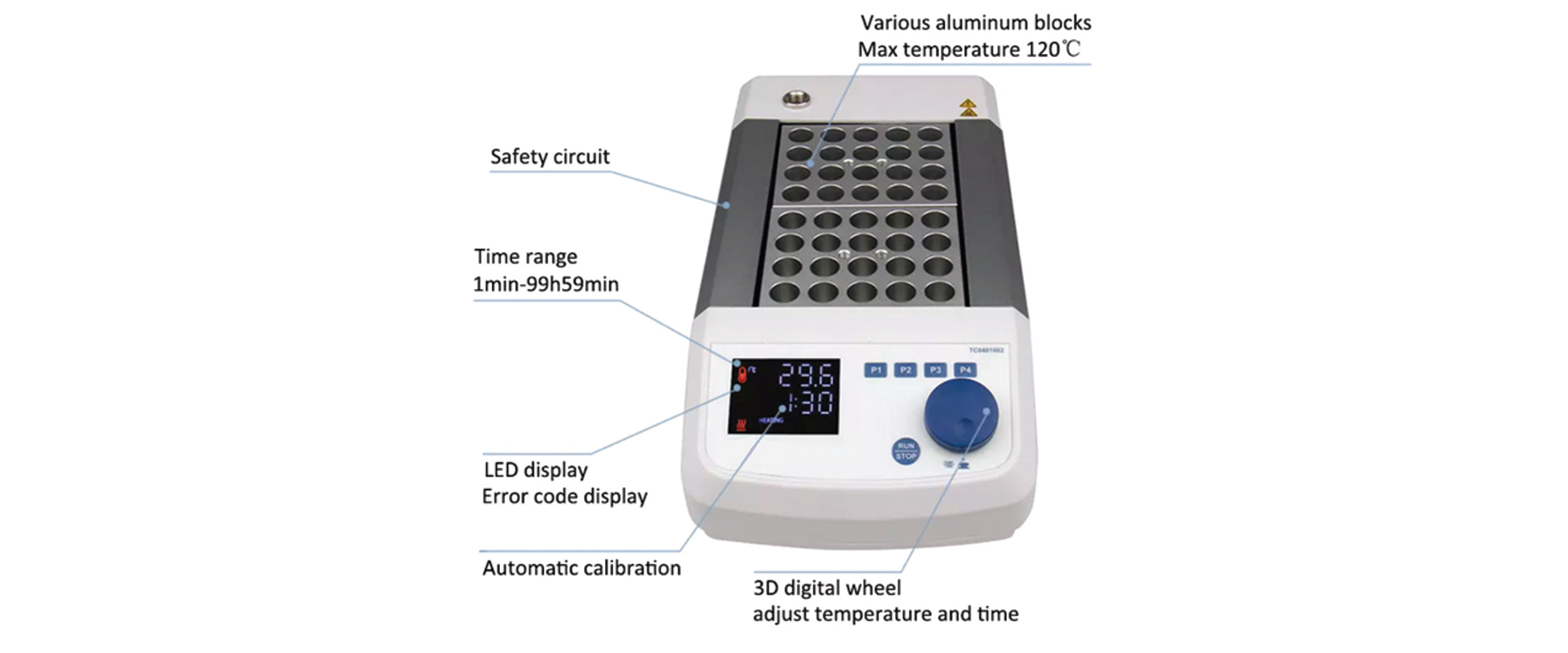

Features
1. LED display for easy reading
2. 30 digital wheel adjustment of speed and temperature
3. Adjustable temperature is up to 120°c
4. High temperature stability is up to ±0.5°C
5. Machined aluminum heating unit allows for highly precise control of temperature
6. Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
7. Adjustable timing range of 1min to 99h59min
8. Fixed safety circuit
9. Error code display
10.Various applications with different blocks
11.Automatic calibration with external PT1000 temperature sensor.
| Model | BN15-0401002 |
|---|---|
| Number of blocks | 2 |
| Heat output [W] | 250 |
| Heating temperature range [0C] | room temp. +5° - 120 |
| Temperature display | yes |
| Adjustment and display resolution [K] | 0.1 |
| Connection for ext. temperature sensor | DIN 12 878 |
| PT 1000 variation; DIN EN 60751 Kl. A [K] | <= ± (0,15 +0,002xlTI) |
| Temperature stability within the blocks<60°C * [±°C] | 0.5 |
| Temperature stability within the blocks>60°C * [±0C] | 1 |
| Temperature Uniformity < 60°C * [K] | 0.5 |
| Temperature Uniformity > 60°C * [K] | 0.5 |
| Heating rate / Heat up time with external sensor* [K/min] | 4.5 |
| Set-up plate material | Aluminium alloy |
| Set-up plate dimensions [mm] | 96 X 152 |
| Fixed safety circuit [0C] | 150 |
| Timer | yes |
| Time setting range | 1min- 99h59min |
| Dimensions (W x H x D) [mm] | 152 X 86 X 300 |
| Weight [kg] | 2.5kg |
| Permissible ambient temperature ['C] | 5 - 40 |
| Permissible relative humidity[%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| Voltage [V] | 220 - 240 / 115 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 250 |
