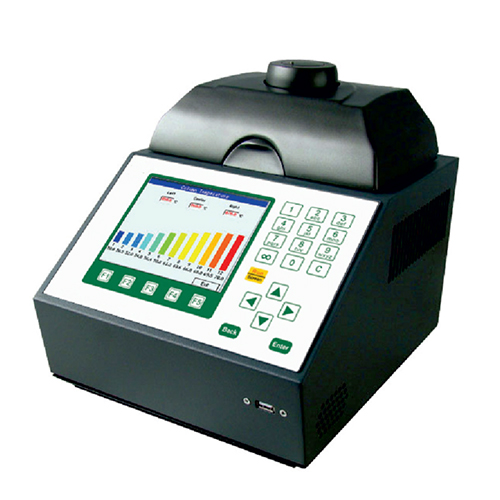

BN15-96G Gene amplification instrument
1. Designed with the latest and most advanced peltier-based semiconductor technology.
2. Fine tuning hot lid, suitable to various consumptive materials.
3. Large 5.7" high-definition LCD display, real-time display process by curvilinear figure.
4. Direct and friendly user inter face, quick and easy for programming.
5. More convenient for gradient optimizing and saving reagent time.
6. Optional block and tube temperature control modes.
7. User interface in both English and Chinese, easy to operate for domestic and abroad users.
8. Beautiful and Generous, solemn and creative surface design.
9. Human optimal design, enable to quick and easy operate.
| Capacity | 96x0.2ml |
| Temp. Range | 0'C~100'C (Rt less than equal to 30'C) |
| Gradient Temp. Range | 30'C~99.9'C, Gradient Difference: 1'C~30'C |
| Maximum heating rate | Greater than equal to 5.0'C/s |
| Maximum cooling rate | Greater than equal to 4.5'C/s |
| Time increasing/decreasing | 1~120s,enable to do Long PCR experiment |
| Temp. increasing/decreasing | 0.1~10.0'C,enable to do Touchdown PCR experiment |
| Temp. Rate adjustable | Yes |
| Temp. Control | Sample Block and Module Tube |
| Max no. of step | 40,can multiple nesting cycle |
| Sample block temp. Uniformity | less than equal to ±0.2'C(in 30s after reach to setting temp.) |
| Sample block temp. Accuracy | less than equal to ±0.2'C(30'C~100'C) |
| Programs Storage | 120 (can download programs without limit by U disk) |
| Gradient Temp. Accuracy | less than equal to ±0.3'C (35'C-99.9'C) |
| Gradient Temp. Uniformity | less than equal to 0.3'C((30s after reach to setting temp.) |
| Gradient Temp. Point spread | 12 columns(vertical) |
| Power-off protection | Yes |
| 4'C Heating Preservation | Yes |
| Hot Lid Temperature | 30'C~105'C (adjustable) |
| Hot Lid height | Step less Adjustable(pressure auto-suit to various PCR tubes and disks) |
| Hot Lid auto-shutdown function | Sample block less than equal to 30'C or program ends |
| Communication Port | USB2.0, RS232 |
| Volume (LxWxH) | 245x300x280 (mm) |
| Weight | 8.0 (kg) |
